Fiat's source code
Caveat. This code is spottily documented and could use some
cleaning up. It looks like the sort of code that one might write towards
the end of a project when immediate operation is more urgent (if not
more important) that maintainability, cough cough.
The PIC code.
The Palm III code.

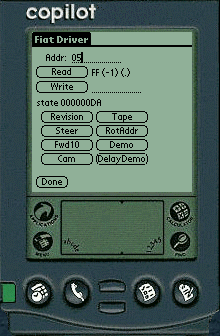

This is the ``user interface'' on the robot itself (courtesy of Clint
Hepner and xcopilot).
I had plans to remotely control the robot over the infrared port, but ran
out of time during the term.
- The top part of the panel lets me read or write an arbitrary address in
the PIC's memory space.
- The next line (that says ``state 000000DA'') reports status messages
generated by various control procedures.
- Each of the lower eight buttons is assigned to a function that lets
me test some part of the robot's operation, described below.
- (Revision) resets the robot and prints the RCS Id on the status line.
- (Steer) toggles the steering servo between its two states, parallel
and perpendicular to the rear wheels.
- (Fwd10) drives the robots forward ten centimeters using the shaft
encoder to measure distance.
- (Cam) rotates the cam assembly alternately in (paper released) and
out (paper attached) of the chassis.
- (Tape) spins the tape-winding motor for a half-second.
- (RotAddr) rotates the robot the number of degrees specified in
the Addr: input field. (GUI overloading. :v)
- (Demo) performs a sequence of the above primitive
operations. It picks up a sheet of paper, carries it forward a ways,
turns 90 degrees, carries it forward again, rotates 180 degrees, drops
the paper, and returns to its original position, ready to pick up the
next sheet on the stack.
- (DelayDemo) was used to make the demo video. It waits three seconds
(for me to get my hand out of the frame), then performs the demo three
times, to move a stack of three sheets of paper.
