Scans of the Palm III

I made these images of the Palm III PCB in order to verify the ROM card pinout. Unfortunately, too many traces were hiding underneath the plastic connector to provide very much useful information. (I'm not sure how many non-plane layers are inside the board, either.)

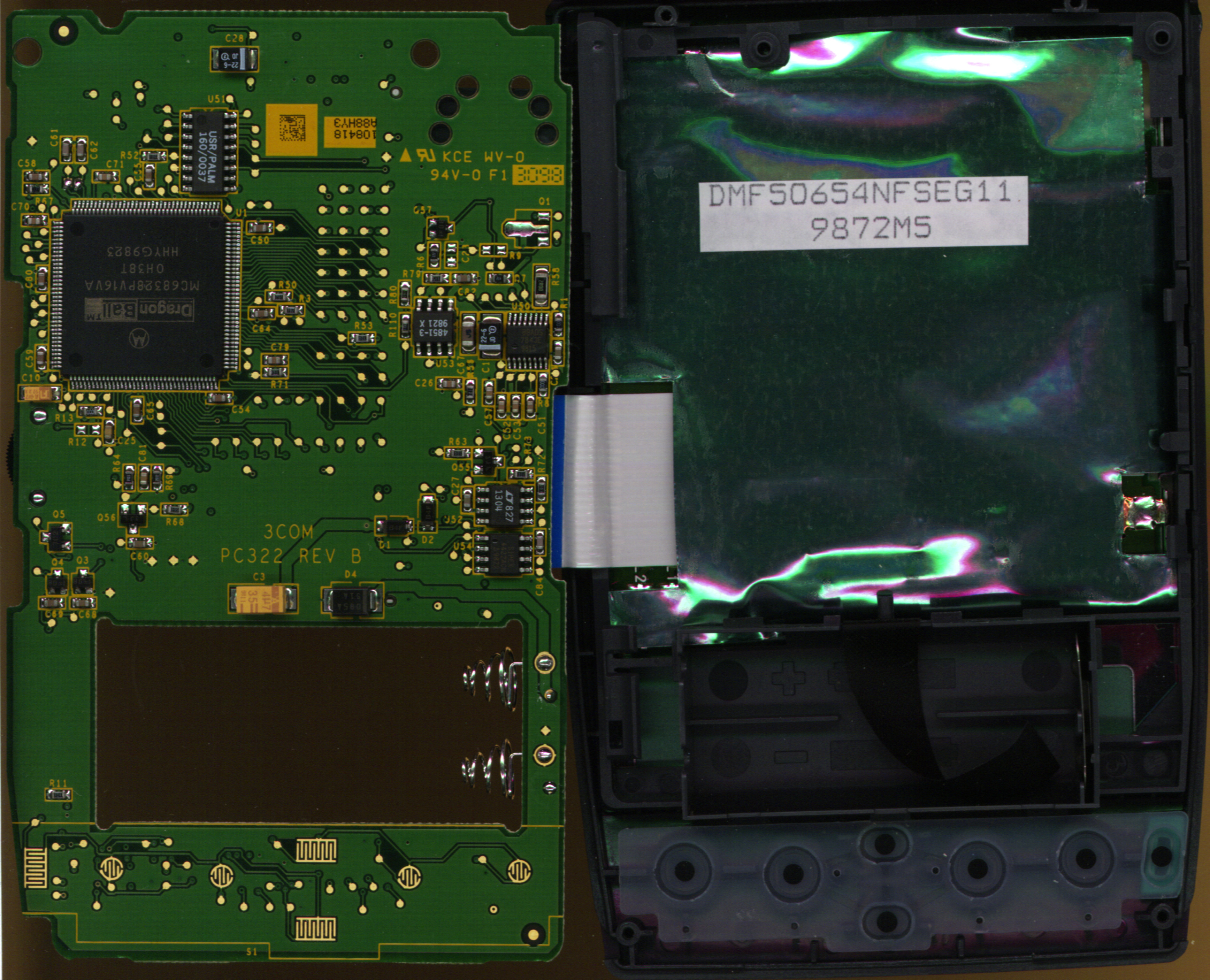

  • back of the board

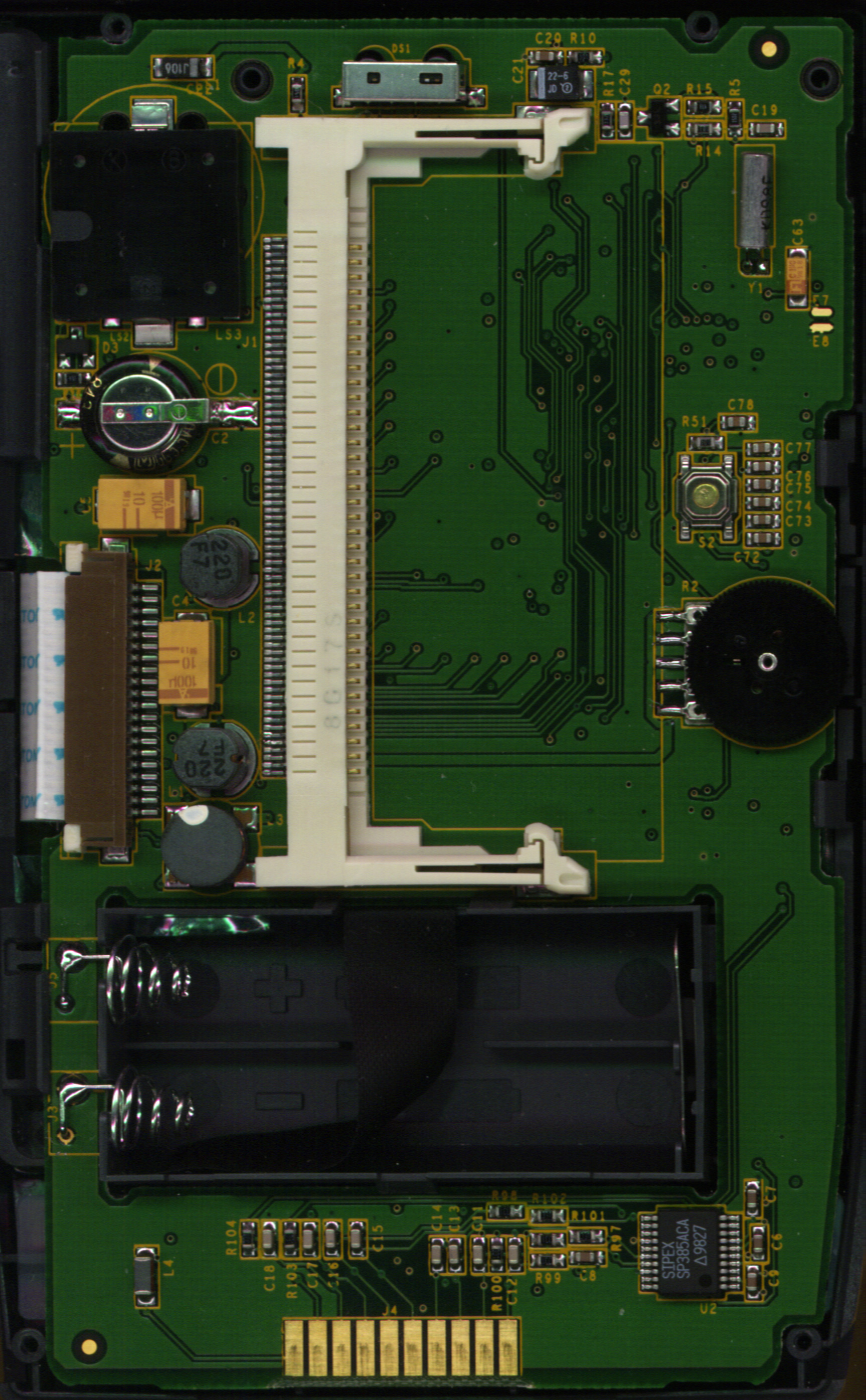

  • front of the board

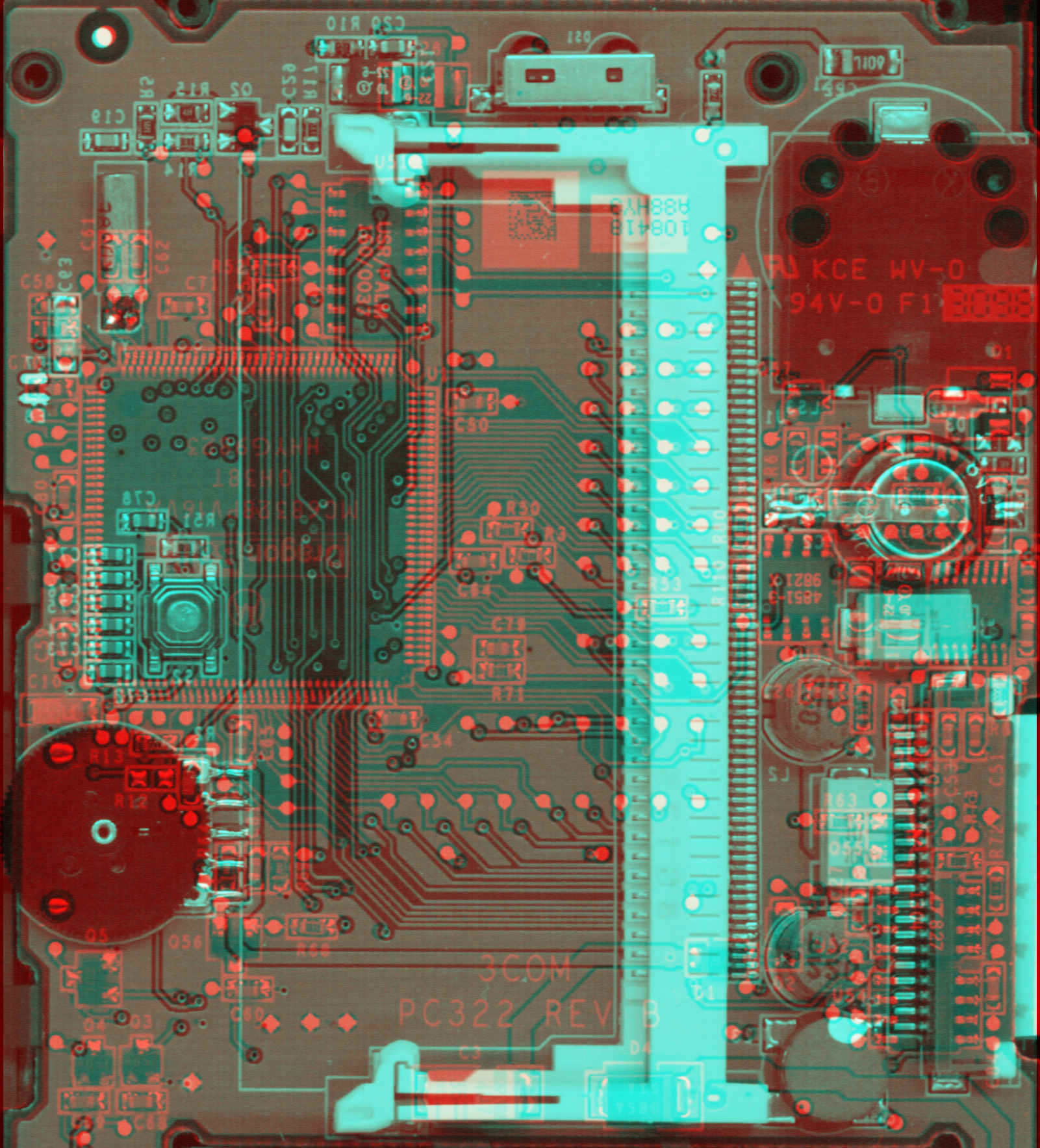

  • red/blue superimposed composite
